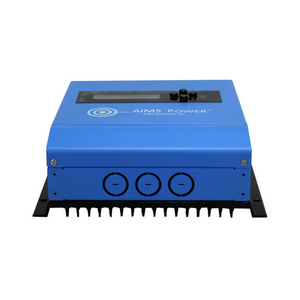

AIMS Power 30 AMP MPPT Solar Charge Controller - 12 or 24 VDC
This solar battery charge controller by AIMS Power features a smart tracking algorithm using MPPT charging technology and has less power loss performing at 97.5-99% efficiency, maximizing energy harvest. The tracking algorithm is automatic and varies with weather conditions.
This charge controller also has temperature compensation protection using the included battery temperature sensor. Charges 12 & 24 volt solar systems with multistage charging technology and adjusts according to battery type. The AIMS charge controller includes LED indicators to show charging status and faults. An LCD displays key information such as battery voltage, solar panel voltage, solar panel charging current and charge mode. Users are able to revise and set the default parameters according to system design. Backed by a 2 year warranty.
Video
Features
- MPPT technology: Maximum Power Point Tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curve
- Quality heatsink cooling – no fans needed and no thermal derating
- Battery type selector and user defined charging voltage
- 4 stage charging

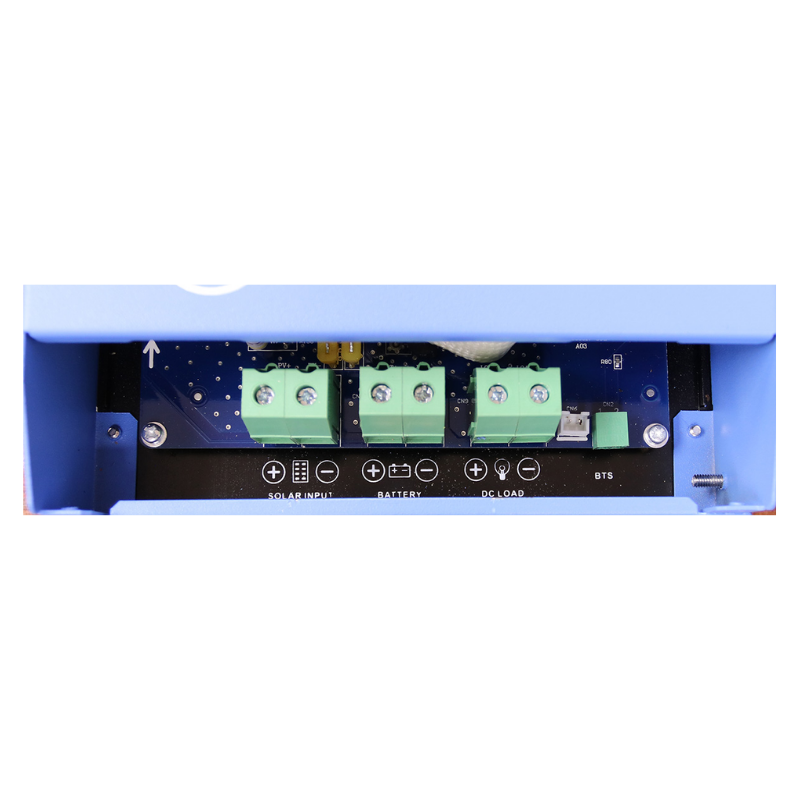

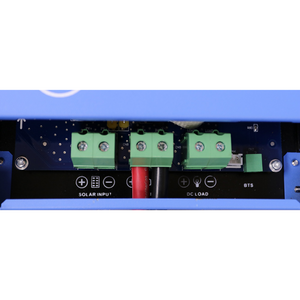

- PV input, battery output and load control ports
- Stackable
- Reliable electronics, over engineered components generating less heat
- Very efficient up to 99%
- Low self consumption
- Thermal design rugged case
- Over temp protection
- Overload, short circuit, high and low voltage protection
- CE, ETL to UL1741 and RoHS compliant
- Marine coated
- Mounting holes
Specifications
ELECTRICAL
PV Operating Voltage:
- 18-100Vdc@12V
- 34-100Vdc@24V
Rated PV input:
- 12V – 400 Watts
- 24V – 800 watts
Maximum battery current: 30 amps
DC load port: 30 amps
Max PV open circuit voltage: 100Vdc
Self power consumption: <2 watts
Efficiency: 97%
Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct
Optimal cooling case design – built for extreme conditions
CHARGING
Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)
4 Stage charging: bulk, absorption, float and equalize
Bulk charge voltage: sealed 14.4V, AGM/Gel 14.2V, flooded 14.6V, user defined 10-15V
Float charge voltage: sealed/AGM/Gel 13.7V, flooded 13.6V, user defined 10-15V
Equalize charge voltage: sealed 14.6V, AGM/Gel 14.8V, flooded 14.8V, user defined 10-15V
Low voltage reconnection: 12.5V
Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)
MECHANICAL
Enclosure: IP43 protection, metal
Cooling: heatsink
Humidity: 100% non-condensing
Temperature compensation: -5mV⁰C / 2V with BTS
Temperature range: -25⁰C to 60⁰C or -13⁰F to 140⁰F
Conformal coated for marine environments
Wire knockouts: 1.25”
Unit weight: 5 lbs
Boxed weight: 6 lbs
Dimensions: 8.25”L x 7”W x 2.75”H
Warranty: 2 years
Certifications: ETL to UL1741, CE, RoHS, CETL
